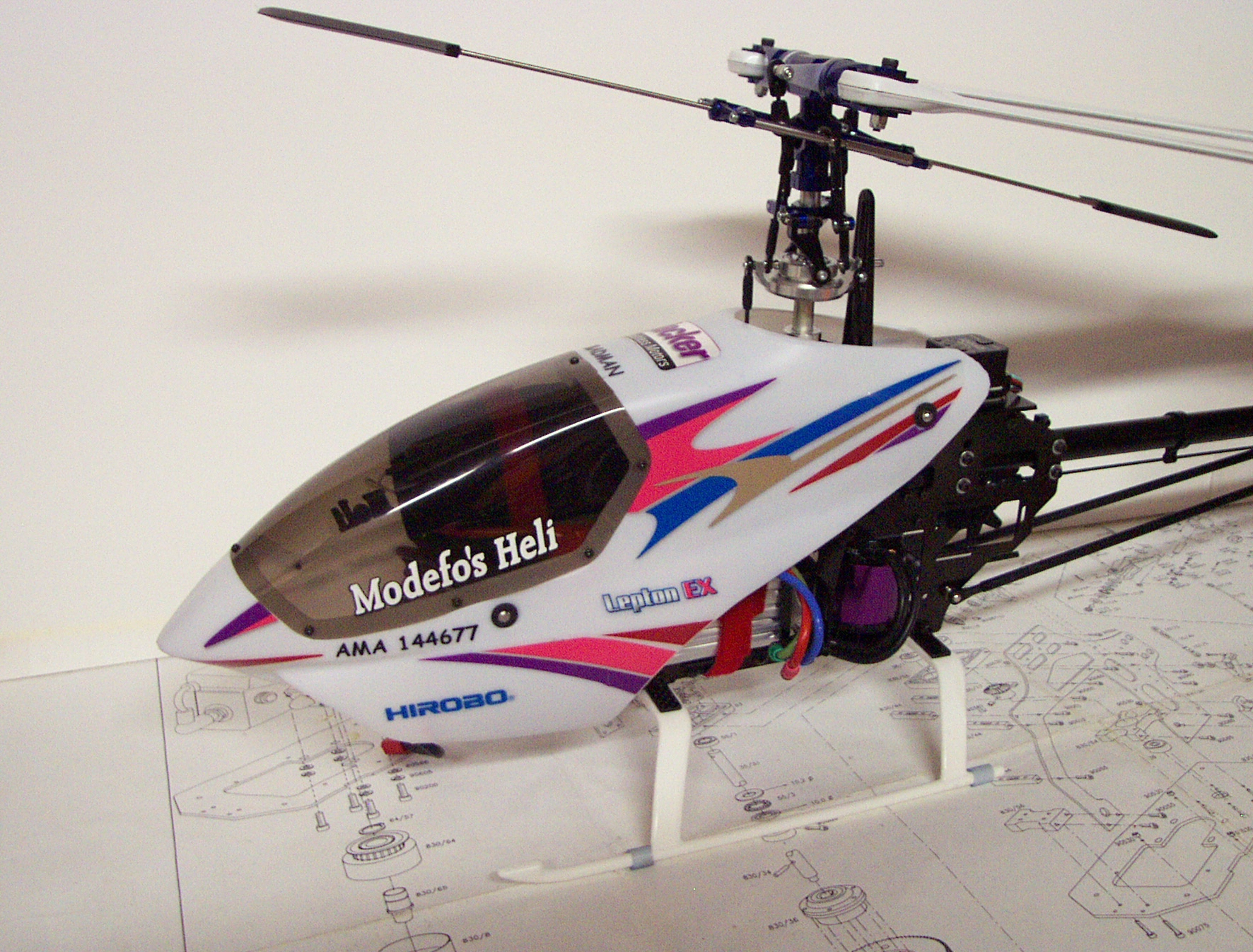

The Hirobo Lepton EX (ultimate setup):
Now THIS is a helicopter that bridges the micro and mid to full size RC heli products! With the
setup below, it has the power of a 90 and flies as smooth as any machine I've ever laid hands on.
Here is my setup:
Ultimate Lepton EX Setup - "Crack Baby Sr." - as flown on my soon to be released new videos:
Hacker A30-12XL 770 kev motor with fan
Jazz 55-10-32 ESC
Medusa 3.5A/6V BEC
5S Evo 3700 Flightpower pack (18.5V) - 24T pinion
Futaba 148dp pcm Rx
3 X Futaba 9650 digital servos (requires frame modifications - slight) on cyclic
GY-401 and and full size 9254 digital servo combo
Duralite voltage step-down for 9254
Upgrades and/or modifications:
MJP carbon fin set
Eolo 68 mm plastic tail blades

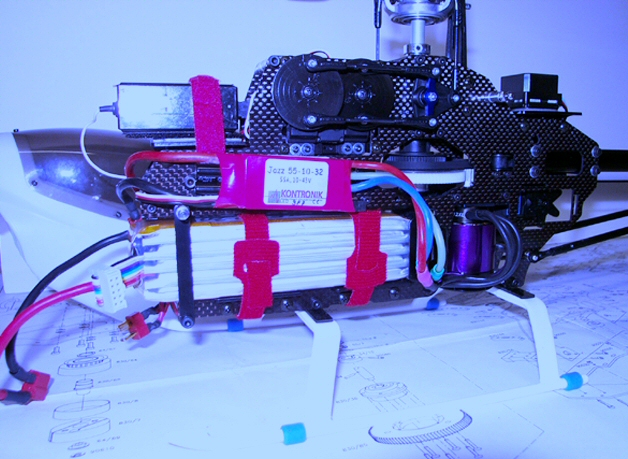

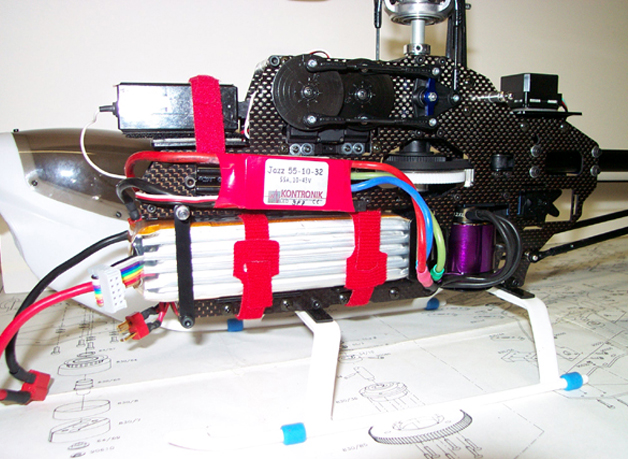

Both the 9650's and 9254 require opening the carbon frames and/or drilling new holes for mounting.
Worth every bit of time it takes :)
Radio Setup:
75% flat line throttle curve - 3000+ RPM
+/- 12 degrees of pitch
about 8 degrees of cyclic deflection
Thanks to Wes at Modefosheli for putting this setup together with me!
Mike
